The fully dissolvable bridge plug produced by Hagrien company is used for high, medium and low temperature oil, gas and water wells with various casing diameters. The metal body and rubber tube of bridge plug can be dissolved in water solution of 240-320 ℉, 176-248 ℉ and 104-176 ℉ respectively, which can realize pressure bearing, rapid dissolution and complete dissolution in 7-10 days after construction in complex wellbore environment. Small ceramic particles are used in the slip part, and the residue left in the well after dissolution is less than 0.1%. Product features: 1. The main component is soluble magnesium alloy with high strength 2. Bridge plug and soluble ball can be completely dissolved after fracturing 3. The dissolution time of central pipe is designed to be a little longer, so as to ensure smooth wellbore during dissolution. 4. 10000 psi differential pressure seal can be realized 5. It is the same as the conventional cable bridge plug perforation, and can adapt to the harsh environment 6. Fully customizable ROD 7. The rated temperature difference reaches 160 ℃ 8. It is equipped with anti semi setting device to effectively avoid the risk of drilling

Hagrien\'s all metal dissolvable bridge plug is a leading product in the industry, which is suitable for high, medium and low temperature oil, gas and water wells with various casing diameters. The main body of the well can be dissolved rapidly in the confined water at 240-320 ℉, 176-248 ℉ and 104-176 ℉ respectively. Small ceramic particles are used in the slip part, and the residue left in the well after dissolution is less than 1%. The breakthrough rubber seal design can control the dissolution time more quickly and accurately, and realize the full pass of wellbore. The small and complex structure of the ball seat can adapt to the underground environment.

Hagrien Super Magnesium Drillable Bridge Plug is a kind of fast drilling and fracturing bridge plug. The biggest feature of the bridge plug is that it can meet the use of various wells. The rubber cylinder can be dissolved in 176-203℉ (rated temperature, medium and low temperature optional) aqueous solution. The biggest feature of the bridge plug is that it can bear pressure and can drill and grind quickly. The slip of the bridge plug uses smaller ceramic particles (8x5mm particles) to drill it All debris and residue can be discharged with the backflow liquid.

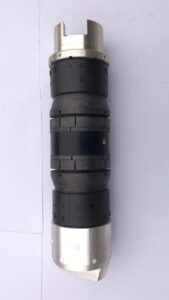

Hagrien\'s Composite Drillable Bridge Plug is a kind of fast drilling fracturing bridge plug. The biggest feature of the bridge plug is that it can meet the use of various wells, in which the rubber cylinder can be dissolved in 176-203 ℉ deg (rated temperature, medium and low temperature optional) aqueous solution. The biggest feature of the bridge plug is that it can bear pressure and can drill and grind quickly. The slip of the bridge plug uses smaller ceramic particles (8x5mm particles) to drill After that, all debris and residue can be discharged with the backflow liquid.

Hagrien's integrated setting tools are innovative products in the industry. The appearance of integrated setting tools solves the problem of tedious maintenance of traditional setting tools. At the same time, the fully dissolvable setting tool and the bridge plug will dissolve together in the well, and there will be no residue and no pollution to the formation after dissolution. Product features: 1. The innovation of external materials and the use of new materials greatly reduce the risk of construction 2. Innovation of product structure. The new product combines the setting tool and bridge plug to form a whole tool. The new product structure simplifies the installation procedure 3. Innovation of product working conditions and theories, new working conditions and theories improve the success rate of product use 4. The function of product innovation. The bridge plug and the setting tool are integrated together. At the same time, they also have the functions of the two, making it easier.

Hagrien's PCI Intelligent Integrated System is an intelligent multi-function system integrating perforation, correction, logging and other functions. The system is mainly composed of control part, drawing part and power supply. The control part is composed of host, display and control software. Modular design, front plug-in or back plug-in structure. The system can be used in various conditions with various perforating, coring and demagnetizing combination instruments. It can be independent system or carried into logging system. Product features: 1. Intelligent control 2. Realize real-time data interconnection 3. Reduce product cost 4. Reduce labor cost 5. Simple operation room 5. It is conducive to product standardization and operation standardization

The Hagrien\'s Drilling Jar is one of the effective tools to solve the sticking accident. The Drilling Jar produced by hagrien can meet the requirements of various well bore sizes.

Hagrien's fully automatic retractable setting tool is a leading product in the industry. It revolutionary unifies Baker 20 and Baker 10 with two different sizes of setting tools. The outer diameter is 70mm, which is conducive to modular production. This product does not use traditional gunpowder as the thrust medium, and completely adopts the electric hydraulic system to provide kinetic energy source for the setting of bridge plug in the setting tool. Compared with the traditional setting tool, it is more safe and reliable, and the performance is stable. Due to the absence of initiating explosive devices, the transportation of products is more convenient.

The Cast Iron large bore bridge plug produced by Hagrien company has compact structure and smooth outer surface, which is suitable for casing pipes of various specifications (3.5-7.0 inches). Compared with other types of large diameter bridge plugs, this kind of bridge plug has the advantages of small outer diameter, large diameter, reliable performance and simple operation. Product features: 1. Provide different sizes of bridge plug matching 3.5 "to 7" casing (and can be customized according to customer requirements) 2. The standard working temperature of bridge plug is 177 ℃; 3. Special materials can be customized for corrosive gas and moisture at the bottom of the well; 4. The working pressure is 70MPa; 5. Standard ignition setting tool or hydraulic setting tool; 6. Drill and grind out the bridge plug slips and directly fish out the well.

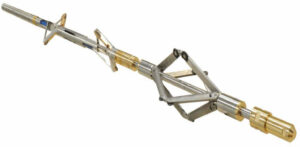

Downhole Tractor

Hagrien provides all kinds of fishing tools for bridge plugs, which can be customized for different sizes and styles of bridge plugs, and provides fishing schemes.

Hagrien downhole cutter is a special tool for cutting tubing (casing) inside the downhole casing. It can cut at any position except casing coupling. The upper part of the casing is separated from the lower part by cutting the casing wall mechanically from the inside of the casing. At the same time, a safety system is set inside the instrument for automatic recovery of the instrument after power failure.
